AEM strived to create an aftermarket performance component with OEM fitment and finish. In doing so, OEM routing paths were selected for the ducting of the intercooler system. Additionally, when possible OEM clearances were maintained to critical systems found in the engine compartment of the Coupe.
The finished product is a complete front mount Intercooler Kit that is designed specifically to work with AEM Cold Air Intake System (Part Numbers 21-687C and 21-687P). The front mount Intercooler Kit part 26-2100C has a Gunmetal Gray finish.

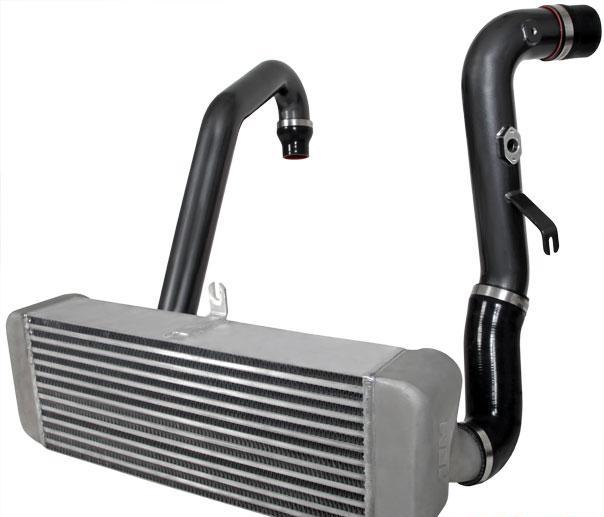

The 26-2100C intercooler kit is a comprehensive bolt-on air cooling system, it contains everything that is necessary for installation down to the couplers, clamps, and brackets. At the heart of the system, a large bar-and-plate intercooler core was chosen to replace the factory Hyundai intercooler. The AEM intercooler core is capped on both ends with end tanks that are optimized to evenly distribute airflow across the core. All-new charge pipes are also included, which are constructed from high-quality 6063-grade mandrel-bent aluminum.
On the right side of the vehicle, the charge pipe connects the turbo discharge to the intercooler. On the left side, the connection from the intercooler to the throttle body is made. As an added benefit, a mounting pad is incorporated onto the charge pipe just before the throttle body. This mounting pad can be utilized to easily plumb water/methanol injection systems into the air inlet tract. This is especially useful for high boost pressure applications and vehicles used in hot climates.
Testing of the AEM Front Mount Intercooler Kit for the Genesis Coupe has revealed valuable performance data. By replacing the Genesis' factory intercooler with the AEM Front Mount Intercooler Kit, the volume of the intercooler core is doubled. This massive increase in volume results into greatly improved heat transfer, which in turn significantly reduces inlet air temperatures.
Specifications and Features
Core Depth (in): 7.75 in (197 mm)
Core Length (in): 20 in (508 mm)
Core Width (in): 4 in (102 mm)
Estimated Horsepower Gain: 10 HP @ 4800 RPM
Finish: Gray Anodized
Horse Power Increase: 10 HP
Inlet Quantity: 2
Intake Pipe Color / Finish: Gunmetal Gray
Intake Pipe Inlet Length: 32 in (813 mm)
Intake Pipe Inlet Shape: Round
Intake Pipe Material: Aluminum
Intake Pipe Outlet Length: 48 in (1219 mm)
Intake Pipe Outlet Shape: Round
Outlet Outside Diameter: 3 in (70 mm)
Oversize Shipping: OS1
Package Contents: 1 Intercooler
Package Material: Paperboard
Package Type: Box
Product Style: AEM Intercooler
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: WARNING Cancer and Reproductive Harm (see www.p65warnings.ca.gov for more detail). Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Warning Label: https//www.knfilters.com/images/l/prop65.jpg //www.knfilters.com/images/l/prop65.jpg
Prop 65 Yes/No: Yes
TUV Approved (Europe): No
Weight: 25 lb (11.3 kg)
Relevant part numbers
Alternate Part Number(s): 262100C
2010 Hyundai Genesis Coupe 4Cyl 2.0L
2011 Hyundai Genesis Coupe 4Cyl 2.0L
2012 Hyundai Genesis Coupe 4Cyl 2.0L
